        LM16UUOP 16mm Linear Ball Bearing 16x28x37mm – 3D Printer – CNC – Mill

        £4.99 – £15.99

        Clear
        LM16UUOP 16mm Linear Ball Bearing 16x28x37mm – 3D Printer – CNC – Mill
        SKU: MEC-BEA-087 Category: Linear Tags: 3D Printer, cnc, Linear Ball Bearing, mill
        Product Categories
        • 3D Printer
          • Controllers
          • Filament
          • Kits
          • Parts & Accessories
        • Arduino
          • Boards
          • Kits
          • Shields and Accessories
        • Cooling
          • Fan Guards
          • Fans
          • Heatsinks
        • Drone
        • Drones and More
          • Accessories
          • Antennas
          • Components
          • Drones
          • Kits
        • Electronics
          • Access Control
          • Cable
          • Components and Sensors
          • DIY Kits
        • LED Lighting
          • Accessories
          • Beads
          • Bulbs
          • Controllers
          • DMX
          • Downlights
          • Panel
          • Strips
        • Mechanical
          • Bearing
          • Bearings
            • Ball
            • Bushings
            • Flange
            • Grooved
            • Linear
            • Miniature
            • Needle
            • Self Aligning
            • Self Lube
            • Taper Roller
          • Fluid Transfer
          • Magnets
          • Mounts and Supports
          • Pulleys and Coupler
          • Rails and Carriage
          • Rods
          • Rods and Carriages
          • Timing Belt
        • Microcontrollers
        • Miscellaneous
        • Motors
          • Accessories
          • Coreless
          • DC Motors
          • Drivers
          • Spindle
          • Step
        • Other
        • Power Supply
        • Raspberry Pi
          • Boards and Kits
          • Shields and Accessories
        • Robotics
          • Components
          • Kits
        • Uncategorised
        • Virtual Reality
        • Description
        • Additional information

        Description:

        LM Series Rubber Sealed Linear Ball Bushings: Manufactured with rubber seals these linear ball bushings are characterised by their smooth movement, high rigidity and low friction, they are easy to maintain or replace and have a good life span in service. They consist of steel outer housings with sets of balls running around their own tracks within the low friction polyamide / steel inner raceways. The UU series has the benefit of rubber seals to prevent the ingress of dust and moisture.
        Closed: LM Closed types – the outer raceway is solid with no relief machined so clearances are preset, choose the adjustable type if you need to control clearances.
        Benefits: Low friction, low maintenance, rubber seal limits moisture and dirt ingress, cost effective solution

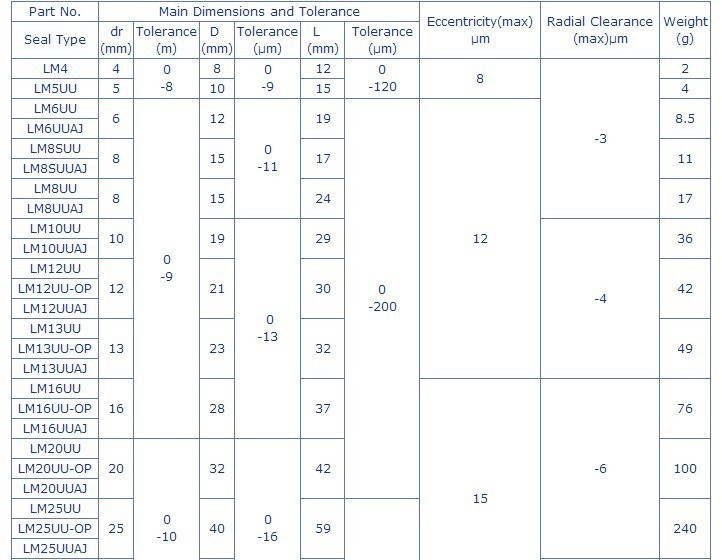

        Specifications:

        LM16UUOP

        Size: 16mm(ID)x28mm(OD)x37mm(L)

        What you will receive:

        LM16UUOP Bearing

        Weight9.07 g
        Qty

        1, 2, 4
