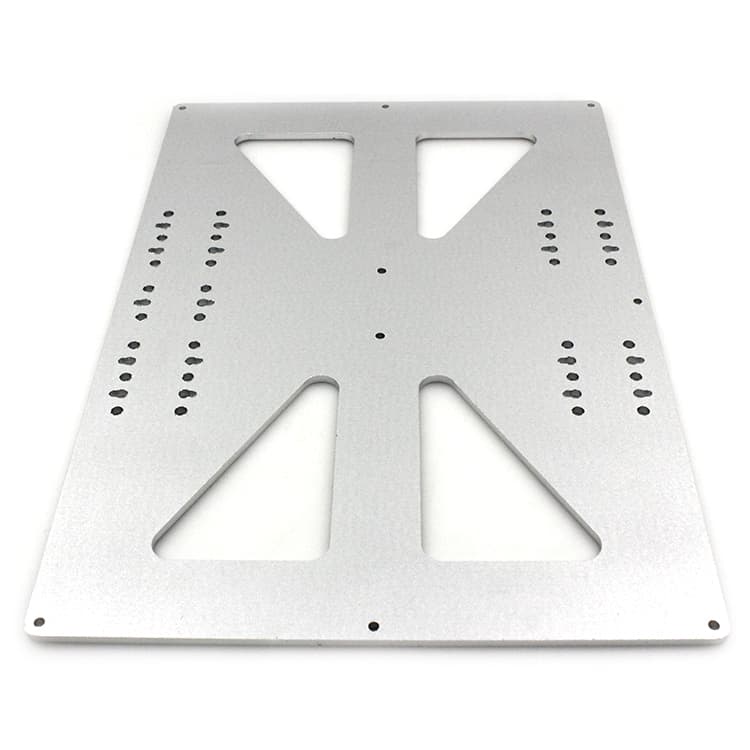

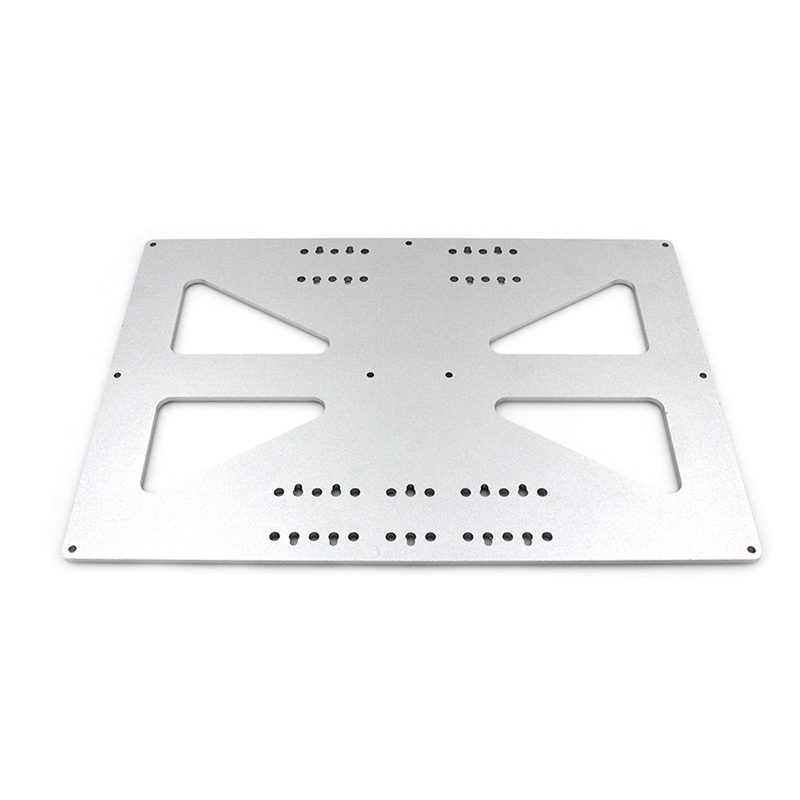

Prusa i3 Anodized Aluminum Y Carriage Plate XL 300×200 Upgrade RepRap 3D Printer

Description:

Prusa i3 Anodized Aluminum Y Carriage Plate XL 300×200 Upgrade RepRap 3D Printer
This is Y Prusa i3 carriage upgrade plate for 300x200mm size of print area.

3.5mm thick aluminum

Universal Prusa i3 XL Carriage features:

• Brushed, anodized aluminum plate 3mm thick (see drawing below for dimensions).
• Has 3 x additional holes for 3 point level adjustment option.
• Allows 3 x linear bearing configuration as well as 4 x bearing configuration.
• Allows for wider and narrower placement of the linear bearings – you can space out bearings or set them closer to each other, depending on the available in your configuration Y-axis rod length.

Linear bearing mounting options:

• LM8UUa in 3d printed holders mounted with M3x12 screws & M3 nuts, STL file for 3d printd holders can be downloaded from thingiverse – thing 40064.
• SC8UUs mounted with M4x10 screws.
• SCV8UUs mounted with M4x10 screws.

Please see supplied drawing for dimensions

What you will receive:

1 x Anodized Aluminum Y Carriage XL 300×200 Plate for Prusa i3.
